Check out the extensive guide to oil immersed transformers, consisting of oil immersed power transformers and oil submersed circulation transformers. Discover their functioning concepts, kinds, benefits, and progressing duty in smart grids and renewable energy.
1. Intro to Oil Immersed Transformers
In the complex internet of our modern-day electrical grid, transformers play an essential duty, silently stepping voltage up and down to guarantee electrical power can be transferred effectively over cross countries and distributed safely to our homes and sectors. Amongst the various kinds offered, the oil immersed transformer stands as a testament to tested integrity and sturdiness. For decades, these workhorses have actually created the foundation of power systems worldwide.
An oil immersed transformer is a type of electrical transformer that utilizes a specific shielding oil as both a coolant and an insulating tool. This layout is mostly made use of for medium to high-power applications, making it a keystone of electric framework. This guide delves deep into the globe of oil submersed power transformers and oil submersed circulation transformers, exploring their modern technology, applications, and their progressing function in an era of digitalization and renewable resource.
1.1 What is an Oil Immersed Transformer?
At its core, an oil submersed transformer consists of a magnetic core and copper or light weight aluminum windings housed inside a secured container filled with insulating oil. The main feature of the oil is twofold:
1. Insulation: The oil possesses high dielectric strength, efficiently insulating the high-voltage windings from the transformer’s core and based tank. This protects against short circuits and electric malfunctions.
2. Air conditioning: As the transformer runs, the windings produce considerable heat as a result of I ² R losses. The flowing oil absorbs this warm, convects it to the transformer’s storage tank walls, and dissipates it into the surrounding air. Larger units frequently feature radiators or fins to increase the area for much more reliable cooling.
This dual-purpose use oil makes the oil submersed transformer remarkably effective and durable, with the ability of handling high loads and enduring short-term overloads better than many dry-type choices.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Circulation Transformer
While all these devices are oil immersed transformers, they offer distinctive functions within the power system network. Understanding the distinction is vital.
An oil submersed power transformer is a heavyweight, typically made use of in transmission networks at generating terminals and significant substations. Their main function is to “step-up” the voltage produced at the power plant to very high degrees (e.g., 138 kV, 230 kV, 500 kV and above) for effective long-distance transmission, and to “step-down” the voltage at obtaining substations for more distribution. They are identified by their really high power scores (usually going beyond 100 MVA), complex construction, and on-load faucet changers for voltage policy.
An oil engaged circulation transformer, on the various other hand, performs the final step in the power shipment chain. It takes the medium voltage from the transmission lines (e.g., 11 kV, 33 kV) and tips it down to the low voltages (e.g., 400/230 V) utilized by commercial and property customers. You commonly locate them on utility posts (pole-mounted) or on ground-level pads (pad-mounted). They are smaller, have reduced power scores (generally as much as 2,500 kVA), and are made for maximum effectiveness at lower, a lot more constant lots.

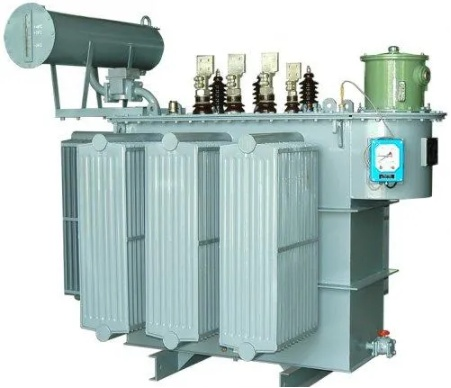

(Oil immersed power transformer)
2. Key Advantages of Oil Immersed Transformers
The enduring popularity of the oil submersed transformer is not unexpected. It supplies a suite of engaging advantages that make it the favored choice for many demanding applications.
2.1 Superior Air Conditioning and Overload Capacity
The exceptional thermal capability of oil compared to air permits an oil submersed power transformer to handle and dissipate heat a lot more properly. This translates to a higher overload capability. Throughout durations of optimal power demand, an oil submersed transformer can manage momentary overloads without suffering damage, an essential attribute for preserving grid security. The oil’s blood circulation guarantees also warmth circulation, avoiding local hot spots that can break down insulation with time.
2.2 Boosted Insulation and Long Life Span
The combination of premium mineral oil and carefully fertilized paper insulation creates a dielectric system of exceptional toughness. This robust insulation system safeguards the transformer from voltage rises and transients, contributing to a functional life expectancy that can include 30-40 years or even more with appropriate maintenance. The sealed tank likewise shields the internal parts from dampness, dirt, and various other atmospheric pollutants.
2.3 High Performance and Cost-Effectiveness
For high-power applications, the oil submersed transformer is typically one of the most affordable choice. The products utilized– mineral oil, steel container, and copper/aluminum windings– offer a desirable equilibrium of efficiency and price. The high performance of these transformers, especially at their rated load, causes lower energy losses over their life time, resulting in considerable price financial savings for utility business and huge industrial users.
3. Warm Topics and Future Trends
The globe of oil immersed transformers is not static. It is continuously evolving to fulfill brand-new challenges and incorporate with modern innovations.
3.1 Eco-friendly and Fireproof Oils
Environmental and security issues are driving a considerable change far from standard mineral oil. The marketplace is rapidly adopting oil immersed transformers loaded with eco-friendly esters (artificial or natural). These oils use a higher fire factor (making them K-class fireproof), are much less toxic, and are easily naturally degradable, considerably reducing the environmental effect in situation of a leakage. This fad is making oil immersed distribution transformers more secure for installation in metropolitan areas and environmentally sensitive locations.
3.2 Combination with Smart Grids and IoT
The contemporary oil engaged power transformer is becoming an intelligent node in the clever grid. Sensors are being integrated to monitor essential parameters in real-time, consisting of:
Dissolved Gas Analysis (DGA): Spotting fault gases produced within the oil to forecast incipient mistakes.
Temperature Level Tracking: Tracking top-oil and hotspot temperatures.
Lots and Power Quality Tracking.
This information, transmitted via IoT (Net of Things) systems, enables predictive upkeep, protects against unintended outages, and maximizes transformer utilization and life expectancy.
3.3 Supporting the Renewable Energy Change
The global promote renewables is creating brand-new need for oil immersed transformers. Massive solar farms and wind power installations call for robust oil immersed power transformers to step up the created voltage to transmission levels. Moreover, the intermittent nature of renewables areas higher stress and anxiety on grid components, and the tested dependability and overload capacity of oil immersed transformers make them suitable for this vital function.
4. Selection and Upkeep Finest Practices
Selecting the best transformer and preserving it properly is key to a dependable power system.
4.1 Exactly how to Select the Right Oil Immersed Transformer
Picking in between an oil submersed power transformer and an oil immersed circulation transformer depends upon the application. Key factors to consider consist of:
1. Voltage Degree and kVA Ranking: Suit the transformer’s specifications to your system’s requirements.
2. Application: Transmission substation, plant, or commercial circulation.
3. Area: Indoor vs. outdoor, environmental conditions, and fire safety policies (which may influence the selection of shielding oil).
4. Effectiveness Requirements: Adhere to regional performance requirements like DOE (United States) or EU CoC (Europe).
5. Spending plan: Take into consideration both the preliminary capital price and the total cost of ownership, consisting of losses.
(Oil immersed distribution transformer)
4.2 Crucial Upkeep for Long Life
Positive upkeep is crucial for any oil immersed transformer. A comprehensive program ought to consist of:
1. Routine Oil Sampling and Screening: Regular DGA and screening of dielectric stamina and dampness material are one of the most reliable ways to analyze the wellness of the transformer.
2. Bushing and Insulation Inspection: Visual checks for fractures, contamination, or leaks.
3. Faucet Changer Upkeep: Routine evaluation and servicing of on-load or off-load tap changers.
4. Maintain it Tidy and Dry: Making certain the storage tank exterior, radiators, and rests are tidy and useful.
The oil submersed transformer, in its roles as both a high-capacity oil submersed power transformer and an ubiquitous oil submersed circulation transformer, remains an irreplaceable part of our global power framework. Its tested design, coupled with recurring innovations in protecting fluids and electronic monitoring, ensures it will remain to be a trusted, reliable, and intelligent solution for powering our globe for years to come. As we build the grids of the future, integrating more renewables and digital knowledge, the robust and adaptable oil submersed transformer will undoubtedly be at the heart of it.
