1. Chemical and Structural Fundamentals of Boron Carbide
1.1 Crystallography and Stoichiometric Variability

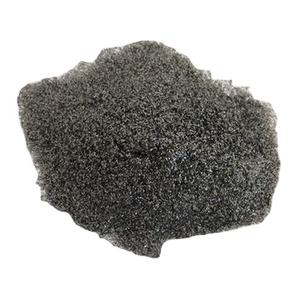

(Boron Carbide Podwer)
Boron carbide (B ₄ C) is a non-metallic ceramic compound renowned for its extraordinary hardness, thermal security, and neutron absorption capability, positioning it amongst the hardest well-known products– gone beyond only by cubic boron nitride and diamond.
Its crystal structure is based upon a rhombohedral lattice composed of 12-atom icosahedra (mostly B ₁₂ or B ₁₁ C) adjoined by linear C-B-C or C-B-B chains, developing a three-dimensional covalent network that conveys phenomenal mechanical strength.
Unlike numerous porcelains with dealt with stoichiometry, boron carbide exhibits a vast array of compositional flexibility, typically ranging from B ₄ C to B ₁₀. FOUR C, as a result of the alternative of carbon atoms within the icosahedra and structural chains.
This variability affects key buildings such as hardness, electrical conductivity, and thermal neutron capture cross-section, permitting residential or commercial property adjusting based upon synthesis conditions and desired application.
The presence of inherent flaws and problem in the atomic plan likewise contributes to its distinct mechanical behavior, consisting of a sensation known as “amorphization under tension” at high stress, which can limit efficiency in extreme influence circumstances.
1.2 Synthesis and Powder Morphology Control
Boron carbide powder is largely produced via high-temperature carbothermal reduction of boron oxide (B TWO O FOUR) with carbon resources such as petroleum coke or graphite in electric arc heating systems at temperatures in between 1800 ° C and 2300 ° C.
The response continues as: B ₂ O SIX + 7C → 2B ₄ C + 6CO, yielding rugged crystalline powder that requires subsequent milling and purification to achieve penalty, submicron or nanoscale bits suitable for sophisticated applications.
Alternative approaches such as laser-assisted chemical vapor deposition (CVD), sol-gel processing, and mechanochemical synthesis deal routes to higher purity and regulated particle dimension distribution, though they are usually limited by scalability and expense.
Powder features– consisting of particle dimension, form, jumble state, and surface chemistry– are important parameters that affect sinterability, packing thickness, and final element efficiency.
As an example, nanoscale boron carbide powders show boosted sintering kinetics due to high surface energy, enabling densification at lower temperature levels, however are vulnerable to oxidation and call for safety ambiences during handling and handling.
Surface functionalization and covering with carbon or silicon-based layers are significantly used to boost dispersibility and inhibit grain growth during consolidation.
( Boron Carbide Podwer)
2. Mechanical Properties and Ballistic Performance Mechanisms
2.1 Firmness, Fracture Durability, and Put On Resistance
Boron carbide powder is the precursor to among the most effective lightweight armor products available, owing to its Vickers hardness of about 30– 35 Grade point average, which enables it to wear down and blunt incoming projectiles such as bullets and shrapnel.
When sintered into thick ceramic floor tiles or incorporated into composite shield systems, boron carbide outmatches steel and alumina on a weight-for-weight basis, making it ideal for employees defense, vehicle armor, and aerospace shielding.
Nonetheless, regardless of its high solidity, boron carbide has reasonably reduced fracture strength (2.5– 3.5 MPa · m 1ST / TWO), making it susceptible to breaking under localized impact or duplicated loading.
This brittleness is intensified at high stress rates, where vibrant failure systems such as shear banding and stress-induced amorphization can lead to catastrophic loss of structural stability.
Ongoing research study concentrates on microstructural design– such as introducing secondary phases (e.g., silicon carbide or carbon nanotubes), producing functionally graded compounds, or designing ordered styles– to alleviate these restrictions.
2.2 Ballistic Energy Dissipation and Multi-Hit Capability
In individual and car shield systems, boron carbide tiles are typically backed by fiber-reinforced polymer compounds (e.g., Kevlar or UHMWPE) that take in recurring kinetic power and consist of fragmentation.
Upon impact, the ceramic layer cracks in a controlled way, dissipating power via devices including particle fragmentation, intergranular fracturing, and stage improvement.
The fine grain structure stemmed from high-purity, nanoscale boron carbide powder improves these power absorption processes by boosting the density of grain limits that impede fracture proliferation.
Recent improvements in powder handling have caused the development of boron carbide-based ceramic-metal composites (cermets) and nano-laminated frameworks that improve multi-hit resistance– a crucial demand for armed forces and police applications.
These crafted products preserve safety performance even after first influence, attending to an essential limitation of monolithic ceramic shield.
3. Neutron Absorption and Nuclear Design Applications
3.1 Communication with Thermal and Quick Neutrons
Past mechanical applications, boron carbide powder plays an important role in nuclear modern technology as a result of the high neutron absorption cross-section of the ¹⁰ B isotope (3837 barns for thermal neutrons).
When incorporated into control poles, protecting products, or neutron detectors, boron carbide effectively regulates fission reactions by catching neutrons and going through the ¹⁰ B( n, α) ⁷ Li nuclear response, generating alpha particles and lithium ions that are easily had.
This property makes it crucial in pressurized water reactors (PWRs), boiling water reactors (BWRs), and study reactors, where specific neutron flux control is important for secure procedure.
The powder is typically fabricated into pellets, finishes, or distributed within steel or ceramic matrices to form composite absorbers with tailored thermal and mechanical residential or commercial properties.
3.2 Security Under Irradiation and Long-Term Efficiency
An important advantage of boron carbide in nuclear settings is its high thermal security and radiation resistance as much as temperature levels exceeding 1000 ° C.
Nonetheless, extended neutron irradiation can bring about helium gas build-up from the (n, α) reaction, causing swelling, microcracking, and degradation of mechanical integrity– a sensation called “helium embrittlement.”
To minimize this, researchers are developing doped boron carbide formulas (e.g., with silicon or titanium) and composite layouts that suit gas launch and preserve dimensional stability over extensive life span.
In addition, isotopic enrichment of ¹⁰ B enhances neutron capture performance while lowering the total material quantity needed, boosting activator design flexibility.
4. Emerging and Advanced Technological Integrations
4.1 Additive Manufacturing and Functionally Graded Parts
Recent progress in ceramic additive production has allowed the 3D printing of complicated boron carbide components using techniques such as binder jetting and stereolithography.
In these procedures, great boron carbide powder is uniquely bound layer by layer, followed by debinding and high-temperature sintering to accomplish near-full thickness.
This ability permits the fabrication of customized neutron securing geometries, impact-resistant lattice frameworks, and multi-material systems where boron carbide is incorporated with steels or polymers in functionally graded layouts.
Such designs optimize performance by incorporating hardness, strength, and weight performance in a single element, opening brand-new frontiers in protection, aerospace, and nuclear engineering.
4.2 High-Temperature and Wear-Resistant Industrial Applications
Beyond defense and nuclear fields, boron carbide powder is made use of in abrasive waterjet reducing nozzles, sandblasting linings, and wear-resistant finishings as a result of its severe firmness and chemical inertness.
It exceeds tungsten carbide and alumina in erosive environments, specifically when subjected to silica sand or various other tough particulates.
In metallurgy, it serves as a wear-resistant lining for hoppers, chutes, and pumps managing abrasive slurries.
Its reduced thickness (~ 2.52 g/cm THREE) further boosts its appeal in mobile and weight-sensitive industrial equipment.
As powder top quality boosts and handling innovations breakthrough, boron carbide is poised to expand into next-generation applications including thermoelectric materials, semiconductor neutron detectors, and space-based radiation securing.
In conclusion, boron carbide powder stands for a cornerstone product in extreme-environment engineering, combining ultra-high firmness, neutron absorption, and thermal resilience in a solitary, versatile ceramic system.
Its duty in protecting lives, enabling nuclear energy, and progressing industrial efficiency highlights its tactical importance in modern-day innovation.
With proceeded advancement in powder synthesis, microstructural style, and producing combination, boron carbide will certainly remain at the forefront of sophisticated materials advancement for years ahead.
